digital height gages with driving wheel

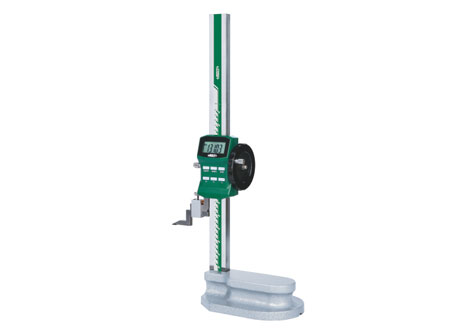

Digital Height Gages with Driving Wheel – Precision and Ease in Vertical Measurement

Digital height gages with driving wheel are advanced precision measuring tools used for accurate vertical measurements in various industries, including manufacturing, quality control, and machining. These digital height gages combine the precision of digital measurement with the added functionality of a driving wheel, making it easier for operators to adjust the measuring head smoothly and precisely.

These devices are ideal for applications requiring high accuracy and ease of operation, such as measuring the height of parts, checking dimensional tolerances, or aligning components in a workshop or lab environment.

Key Features of Digital Height Gages with Driving Wheel

Driving Wheel

Enables smooth and precise height adjustments.

Digital Display

High-resolution readouts ensure clarity and precision.

Data Output

Supports USB/RS-232 for quick measurement transfer.

Sturdy Build

Engineered for durability in industrial environments.

Applications of Digital Height Gages with Driving Wheel

  • Tool Setups: Accurate height setting on CNC machines.
  • Manufacturing: Component alignment & inspection.
  • Quality Control: Tolerance checks on parts.
  • Layout & Marking: Marking parts for machining.
  • Inspection Labs: Controlled measurement of part heights.

 How to Use Digital Height Gages with Driving Wheel

  1. Set Up the Gage: Place on a flat granite surface for accuracy.
  2. Power On & Zero: Turn on and calibrate to a reference point.
  3. Adjust with Driving Wheel: Use the wheel for fine vertical movement.
  4. Measure: Contact the part and note the digital reading.
  5. Record/Export: Save or transmit data via USB/Bluetooth.

 Technical Specifications (Sample Model)

Specification Value
Measuring Range 0 – 600 mm
Resolution 0.001 mm
Accuracy ±0.02 mm
Display LCD (backlit, high-resolution)
Units Metric (mm) / Imperial (inch)
Driving Wheel Yes, for fine adjustments
Battery Life Long-lasting
Material Stainless steel with granite base
