Roundness/Cylindricity Tester – Precision Measurement for Rotational Accuracy

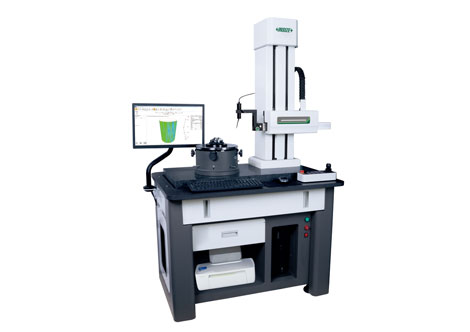

A Roundness/Cylindricity Tester is a high-precision metrology device used to evaluate the geometric accuracy of rotational components. It measures how closely the shape of a part (such as a shaft, bearing, or sleeve) conforms to a true circle or cylinder.
These instruments are indispensable in industries requiring tight geometric tolerances, as even minor deviations can impact performance, increase wear, or lead to assembly issues. Using highly sensitive probes and rotary tables with air bearings, modern testers ensure accurate and repeatable measurements that comply with standards like ISO 1101, ASME Y14.5, and DIN EN ISO 4291.
Key Features of Roundness/Cylindricity Tester
High Precision Measurements
Accurately measures roundness and cylindricity of cylindrical components.
Advanced Data Analysis
Provides detailed analysis and graphical data for precise quality control.
User-Friendly Interface
Simple controls and intuitive software for easy operation and setup.
Versatile Testing Capabilities
Supports a wide range of workpieces, including shafts, rings, and bearings.
Applications of Roundness/Cylindricity Tester
Roundness and cylindricity testers are essential tools used in precision industries to assess geometric accuracy of cylindrical parts.
- Automotive Engine Shafts & Pistons
- Aerospace Turbine and Bearing Components
- Hydraulic and Pneumatic Cylinders
- CNC Precision Parts
- Medical Devices (e.g., orthopedic implants)
- Gear and Spindle Manufacturing
How to Use a Roundness/Cylindricity Tester
- Surface Cleaning: Remove debris or oil from the part to ensure measurement accuracy.
- Centering & Leveling: Mount the component on the rotary table and align it precisely using leveling and centering tools.
- Select Parameters: Choose the measurement type such as roundness, runout, or cylindricity.
- Probe Placement – Align the stylus precisely on the test surface to ensure accurate surface measurement.
- Measurement Cycle: The table rotates while the probe collects surface data.
Technical Specifications
| Feature | Details |
|---|---|
| Roundness Accuracy | Up to 0.01 µm (model-dependent) |
| Rotary Table Accuracy | ±0.02 µm or better |
| Max Measuring Diameter | Up to 300 mm (model-specific) |
| Measuring Height (Z-axis) | Up to 500 mm |
| Probing System | High-precision Inductive / Skidless Probes |
| Form Parameters | Roundness, Cylindricity, Concentricity, Coaxiality, Flatness, Runout |
| Data Output | USB, Ethernet, RS-232, Wi-Fi (optional) |
| Software Features | Auto analysis, GD&T compliance, tolerance zone visualization, report generation |
| Display | PC-based or Integrated Touchscreen System |
| Power Supply | AC Power with Backup Battery (optional) |
| Construction | Granite Base, Cast Iron Columns, Anti-vibration Design |
