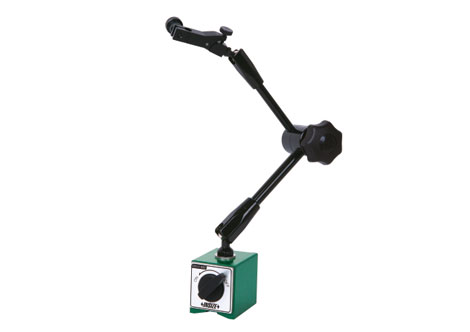

Universal Magnetic Stands (Economic Type) – Stable Support for Precision Measurement Tools

Universal magnetic stands (economic type) are essential tools designed to securely hold dial indicators, test indicators, and other precision measuring instruments during inspection or setup processes. These stands use a permanent magnet base that provides strong holding power on ferrous surfaces, allowing for accurate, hands-free measurements in workshops, tool rooms, and QC labs.

The economic variant of universal magnetic stands delivers reliable performance at a budget-friendly price, making them ideal for cost-conscious professionals who still need dependable measuring support.

 Key Features of Universal Magnetic Stands

High Accuracy

Delivers precise internal dimension measurements.

Clear Dial Display

Easy-to-read scale for quick readings.

Self-Centering Design

Ensures consistent and repeatable results.

Durable Construction

Built for reliable performance in tough conditions.

 Applications of Universal Magnetic Stands

  • Machining & CNC Setup: For aligning tools and checking part tolerances.
  • Inspection & Quality Control: Holding dial indicators for dimension checks.
  • Tool Rooms & Calibration Labs: For precise height and alignment measurements.
  • Automotive Assembly Lines: For setup of jigs, fixtures, and engine calibration.
  • Educational Institutes: For metrology training and demonstrations.

 How to Use Universal Magnetic Stands

  1. Mount the Indicator: Attach the dial or test indicator to the clamp arm.
  2. Activate the Magnet: Turn the knob or switch to activate the magnetic base.
  3. Position the Stand: Adjust the flexible arm to the desired measurement point.
  4. Lock in Place: Secure all joints to avoid movement during measurement.
  5. Deactivate and Store: Turn off the magnet after use to avoid magnet fatigue and store safely.

 Technical Specifications of Universal Magnetic Stands

Feature Details
Magnetic Force Up to 80 kg / 175 lbs holding power
Arm Type Flexible or articulated arm (varies by model)
Base Dimensions Approx. 50 × 60 × 55 mm (standard size)
Material Steel base with nickel or powder coating
Compatibility Suits dial indicators with 8 mm stem or dovetail mount
Adjustability Fine adjustment knob for precise positioning
Weight Approx. 1.5 kg
Packaging Supplied in compact box or blister pack
